Heavy duty and Construction industry slip ring cases

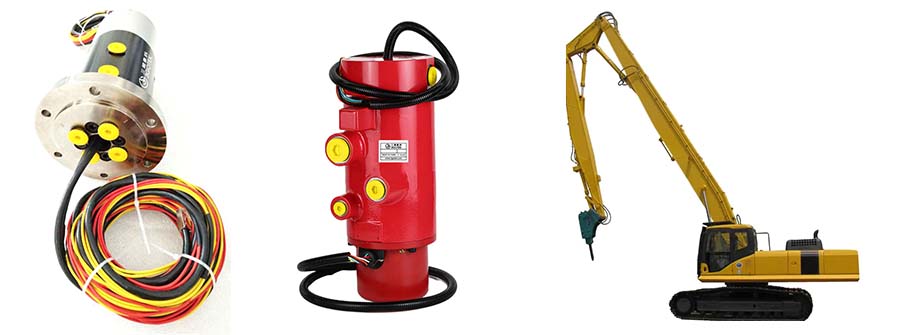

A hybrid slip ring, also known as a hydraulic and electric rotary joint, is a specialized component used in construction and heavy duty machines to enable the transfer of hydraulic fluid or oil and electric or signals from a stationary source to a rotating component, such as a hydraulic cylinder or motor, while maintaining a continuous connection. This is essential in heavy machinery where hydraulic systems and electric systems are extensively used for tasks such as lifting, steering, and other movement-related operations.

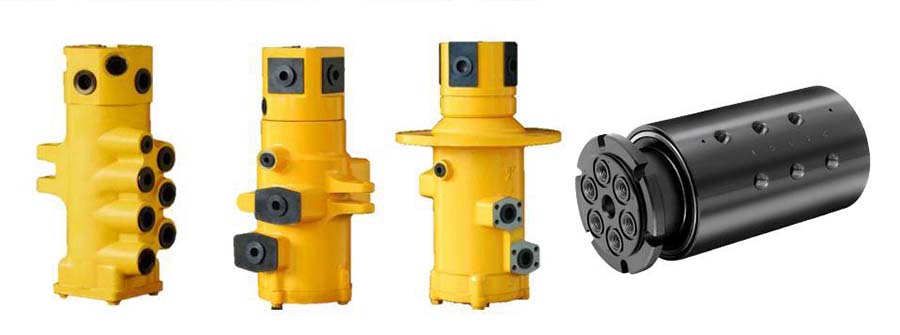

Functionality: Construction machines often involve rotating or articulated parts, such as cranes, excavator arms, lifts and drilling equipment. These components require hydraulic power or electric power to operate. A hydraulic slip ring allows hydraulic fluid to flow from a stationary hydraulic source (such as a pump) to a rotating part of the machine (such as a hydraulic motor) and the electric slip rings allows electric supplies to flow from a stationary electric source (such as a UPS supply) to a rotating part of the machine (such as a electric motor)

Continuous Hydraulic Power: Hydraulic slip rings ensure an uninterrupted supply of hydraulic fluid to the rotating components. This is crucial to maintain consistent performance, precision, and control of the heavy machinery's movements.

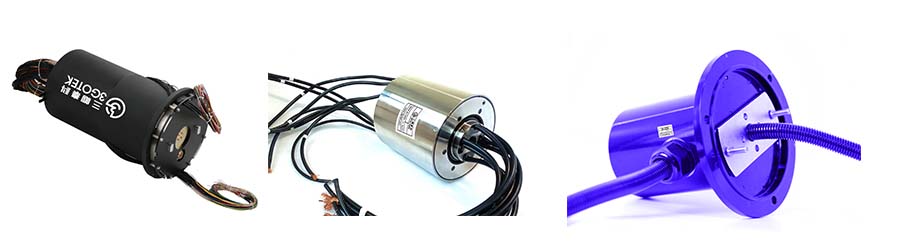

Electric Power Transmission: In heavy-duty machinery, various components require a continuous supply of electrical power. Electric slip rings facilitate the transfer of power from the stationary part of the machine to its rotating components. This ensures uninterrupted operation of motors, sensors, lights, and other electrical devices that are essential for the machine's functionality.
Data and Signal Transmission: Heavy-duty machines often require real-time monitoring, control, and data exchange between stationary and rotating parts. Electric slip rings enable the transmission of control signals, sensor data, video feeds, and other essential information. This data exchange empowers operators to make informed decisions and ensures the safety and optimal performance of the machine.

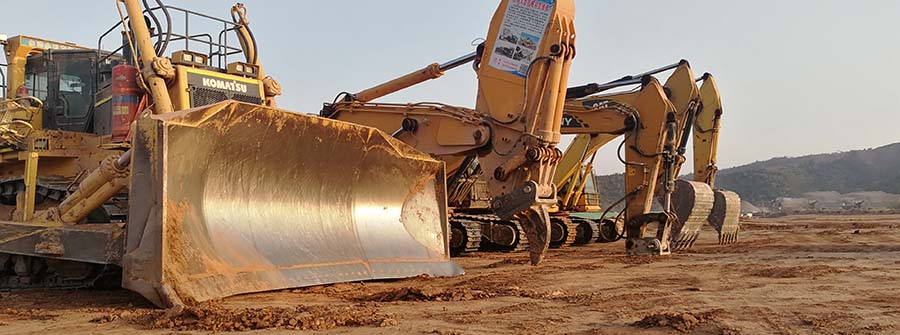

Rotational Movement: Many construction machines require full or partial rotation of specific parts, such as the boom of a crane or the arm of an excavator. The hydraulic slip ring enables these rotating components to receive the necessary hydraulic power without hindering their movement.
Unrestricted Rotation: Many heavy-duty machines, such as cranes, excavators, and drilling rigs, require full rotational movement to perform their tasks effectively. Electric slip rings enable these machines to rotate 360 degrees without tangling or damaging the electrical cables. This flexibility enhances the machine's efficiency and precision during operations.

Multiple Circuits: In complex construction machinery, there might be a need for multiple hydraulic or electric circuits to control various functions. A hydraulic and electric hybrid slip ring can accommodate multiple passages and ways to transfer different types of hydraulic fluids, power supplies or control signals, allowing the machine to perform a range of tasks efficiently.
Reduced Wear and Maintenance: Traditional wiring solutions that involve fixed cables can suffer from wear and tear due to the constant movement of heavy-duty machines. The slip rings eliminate the need for excessive cable twisting, reducing the risk of cable breakage and maintenance downtime. This contributes to the overall longevity and efficiency of the machinery.
Sealing and Durability: 3GOTEK Hydraulic slip rings are designed with sealing mechanisms to prevent hydraulic fluid leakage and contamination and the 3GOTEK electric slip ring designed with IP65 sealing or IP67/68 as requested for waterproof. This is especially important in construction environments where the machinery operates in harsh conditions involving dust, debris, raining and extreme temperatures.
Remote Control and Automation: Hydraulic slip rings can also facilitate remote control and automation of machinery functions. They allow for precise control and monitoring of hydraulic systems, which is especially useful in tasks that require high precision, such as pile driving or drilling.

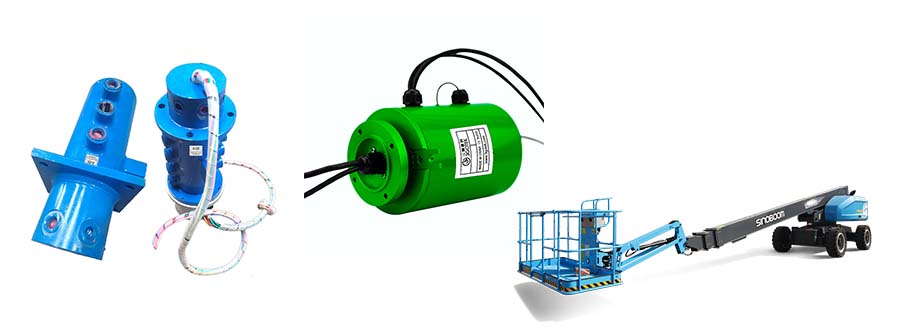

Hybrid slip rings or Electric slip rings or hydraulic slip rings find applications in various heavy-duty machinery, including construction equipment, mining machinery, material handling systems, aerial working platform, boon lifts, cranes, tower cranes and more. They cater to diverse industries where continuous power and signal transmission are vital.
